XT285-2.5

Voltage References

Application

Handheld instruments
Handheld devices
Battery systems
Current loop devices

View details View datasheet More products

Overview

Product details

The 285-2.5 is a micropower 2-terminal bandgap voltage regulator diode.
Operating over a 20μA to 20mA current range, they have extremely low dynamic impedance and excellent temperature stability. On-chip trimming is used to provide tight voltage tolerances

Features

● ±20 mV (0.8%) maximum initial tolerance
● Operating current 20μA to 20 mA
● 0.60Ω dynamic impedance
● Low voltage reference -2.5V

Apply for samples

Product	Package	Operating temperature	QTY.	ROHS	Apply for samples

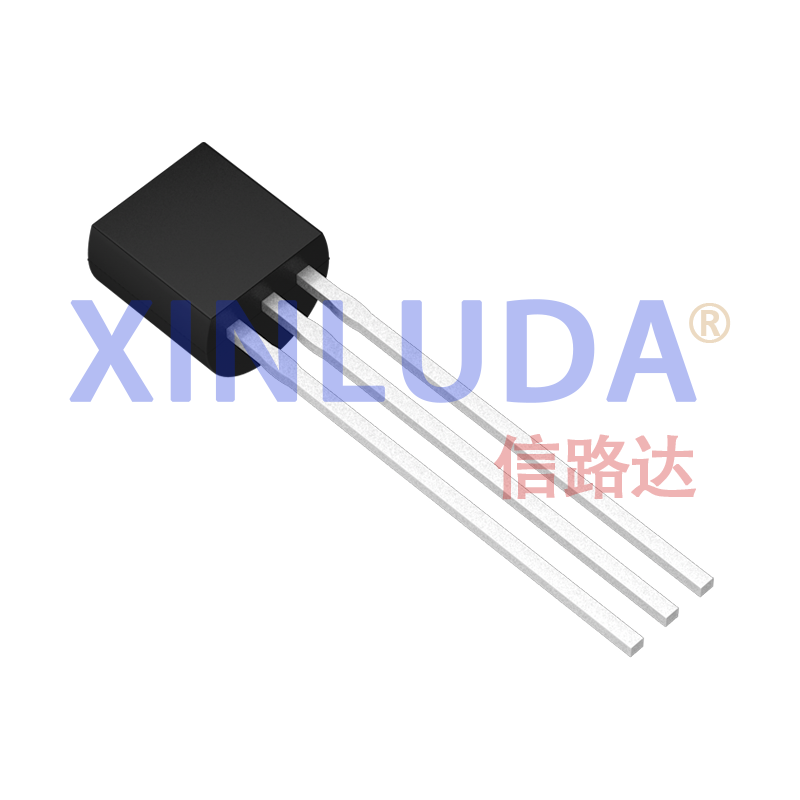

XT285-2.5	TO-92	-40℃~+85℃	1000 pcs/Tube	✔	Sample application
