XB431-TL

Voltage References

Application

Adjustable voltage and current references
Secondary-side regulation for flyback SMPS
Zener diode replacement Voltage monitoring
Integrated reference comparator.

View details View datasheet More products

Overview

Product details

XB431-TL is a low voltage three-terminal adjustable voltage reference source launched by XINLUDA. The output voltage of this product can be set to any value between VREF (1.24V) and 6V by two external resistors. The operating voltage (1.24V) of this product is lower than the widely used XB431 shunt regulator. When used with an optocoupler, the XB431 device is an ideal voltage reference source in the isolated feedback circuit of a 3V~3.3V switching power supply. The typical output impedance of this product is 0.25Ω. Its active output circuit provides a very fast turn-on characteristic, making it suitable for many applications.

Features

● Low operating voltage
● VREF=1.24V
● Adjustable output voltage
● Vo=VREF~6V
● Reference voltage tolerance at 25℃: - 1% for XB431-TL
● Typical temperature drift: - 6mV (-40℃~85℃)
● Low cathode operating current: 80μA typical 0.25Ω typical output impedance

Apply for samples

Product	Package	Operating temperature	QTY.	ROHS	Apply for samples

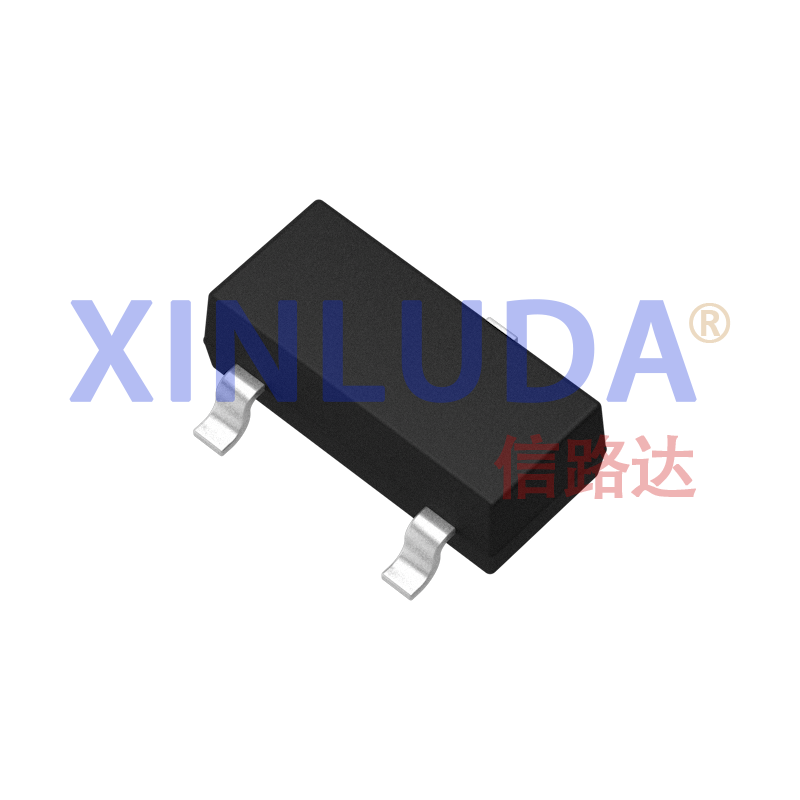

XB431-TL	SOT-23-3	-40℃~+125℃	3000 pcs/Reel	✔	Sample application
