XL4514

CMOS 4-bit latch/4 to 16 line decoder with selectable output "high"

Application

Computer
Digital control
Communications

View details View datasheet More products

Overview

Product details

High voltage type (20 volt rating) XL4514 selects output "high" XD4514 selects output "low". XL4514 consists of a 4-blt:strobed latch and a 4 to 16 inch decoder.

Features

● Input latch with handle
● Inhibit control
● 100% tested quiescent current at 20V
● Maximum input current 1μ18V over full package temperature range; 100mA at 18V and 25V°C
● Noise margin (over full package temperature range): 1V at V-DD = 5V，1V at V-DD = 10V，2.5V at V-DD = 15V
● 5-V，10-V，and 15-V parameter ratings
● Standardized
● Meets all requirements of JEDEC Provisional Standard No. 13B* Standard Specifications for
● Symmetrical output characteristics

Apply for samples

Product	Package	Operating temperature	QTY.	ROHS	Apply for samples

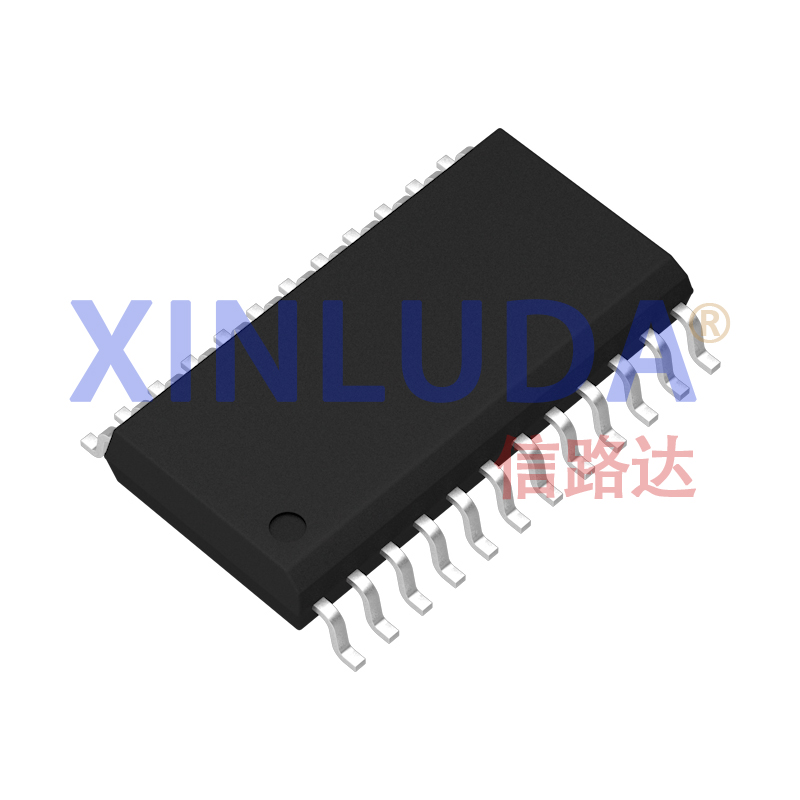

XL4514	SOP-24	-40℃~+85℃	1000 pcs/Reel	✔	Sample application
