XL74LS157

Encoders, Decoders, Multiplexers & Demultiplexers Quad Data

Application

Multiplex dual data bus
Expand arbitrary data input point
Generate four functions of two variables (one variable common)
Source programmable counter

View details View datasheet More products

Overview

Product details

The XL74LS157 is a high speed quad 2-input multiplexer. Four bits of data from two sources can be selected using common select and enable inputs. Four buffered outputs present the selected data in true (non-inverted) form. The XL74LS157 can also be used to generate any 4 of 16 different functions of two variables. The XL74LS157 is fabricated using a Schottky barrier diode process for high speed.

Features

● Schottky process for high speed
● Multi-function capability
● Non-inverting output
● Input clamp diode limits high-speed terminal effect
● Special circuit ensures interference-free multiplexing
● ESD>3500V

Apply for samples

Product	Package	Operating temperature	QTY.	ROHS	Apply for samples

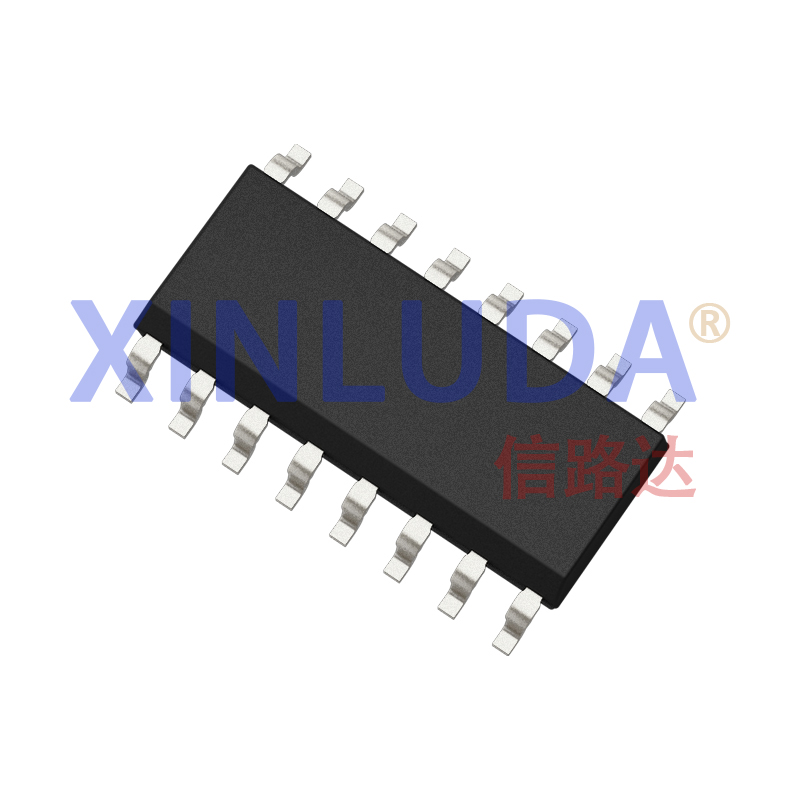

XL74LS157	SOP-16	0℃~70℃	2500 pcs/Reel	✔	Sample application
