XD339

Quad Differential Comparators

Application

Vacuum robot
Single phase UPS
Server PSU
Cordless power tool
Wireless infrastructure
Applicances
Building automation
Factory automation & control Motor drives
Infotainment & cluster

View details View datasheet More products

Overview

Product details

The XL/XDx39 and XL/XD2901 comparators feature low offset voltage, high supply voltage capability, low supply current, low input bias current, low propagation delay, and input ruggedness through dedicated ESD clamps.

Features

● Specifications for XL/XD239，XL/XD339，XL/XD2901 -Maximum rating: up to 36 V -Low input offset: 2 mV -Low input bias current: 25 nA -Low supply-current: 300 µA per comparator(TYP)
● Common-mode input voltage range includes ground
● Differential input voltage range equal to maximum- rated supply voltage: ±36 V
● Low output saturation voltage
● Output compatible with TTL， MOS， and CMOS

Apply for samples

Product	Package	Operating temperature	QTY.	ROHS	Apply for samples

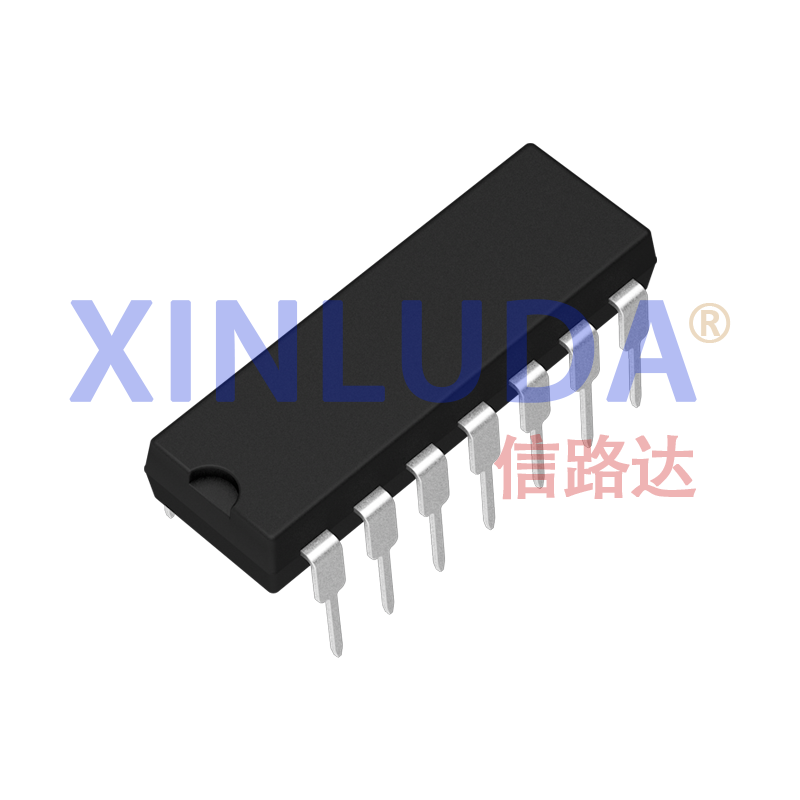

XD339	DIP-14	0℃~+70℃	1,000Pcs/Tube	✔	Sample application
