XL385-1.2

Voltage References

Application

Handheld instruments
Handheld devices
Battery systems
Current loop devices

View details View datasheet More products

Overview

Product details

XL385-1.2 is a micropower double-ended bandgap Zener diode launched by XINLUDA. They have an operating current range of 10μA to 20mA and have extremely low dynamic impedance and good temperature stability. Their on-chip fine-turning function can be used in applications that require strict voltage tolerance. The rated operating temperature range of XL385-1.2 is 0℃ to 70℃. 385-1.2 also adopts low-cost TO-92 package as well as SOIC and SOT-23 package

Features

● ±1% initial tolerance
● Operating current range is 10μA to 20mA
● Dynamic impedance 1Ω
● Low voltage reference: 1.235V
● 2.5V devices and adjustable voltage devices are also available

Apply for samples

Product	Package	Operating temperature	QTY.	ROHS	Apply for samples

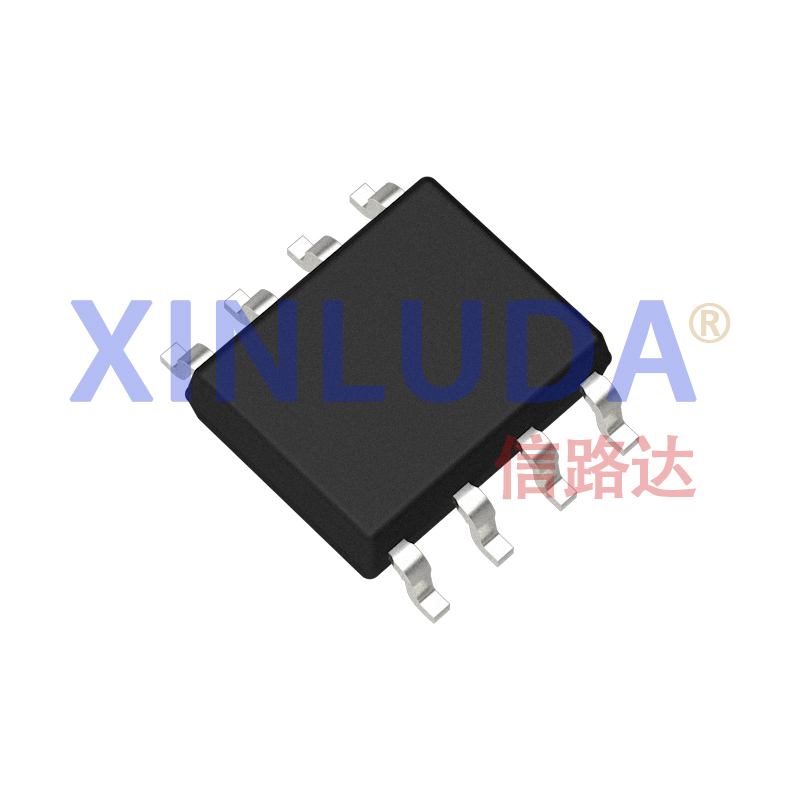

XL385-1.2	SOP-8	0℃~+70℃	2500 pcs/Reel	✔	Sample application
