XL74LS02

Quadruple 2-Input Positive NOR

Application

Computer
Digital control
Communications

View details View datasheet More products

Overview

Product details

The XL74LS02 and XD74LS02 are logic gate chips and member of 74LSxx IC series which are logic gates. There are four NOR gates in the chip and each gate has two inputs, hence the name QUADRUPLE TWO INPUT NOR GATE. These chips come up with internal protection from discharge using clamp diodes, which keep its protected from any internal voltage leakage activity.

Features

● The operating voltage range +4.75V to +5.25V
● The maximum current can draw from the output of the gate is 8mA
● The maximum ESD protection range for IC is 2KV (HBM) and 200V(CDM)
● The typical rise and fall time for IC is about 20ns
● Operating temperature is from 0 to 70 degree Storage temperature range is -50 to 150 degrees

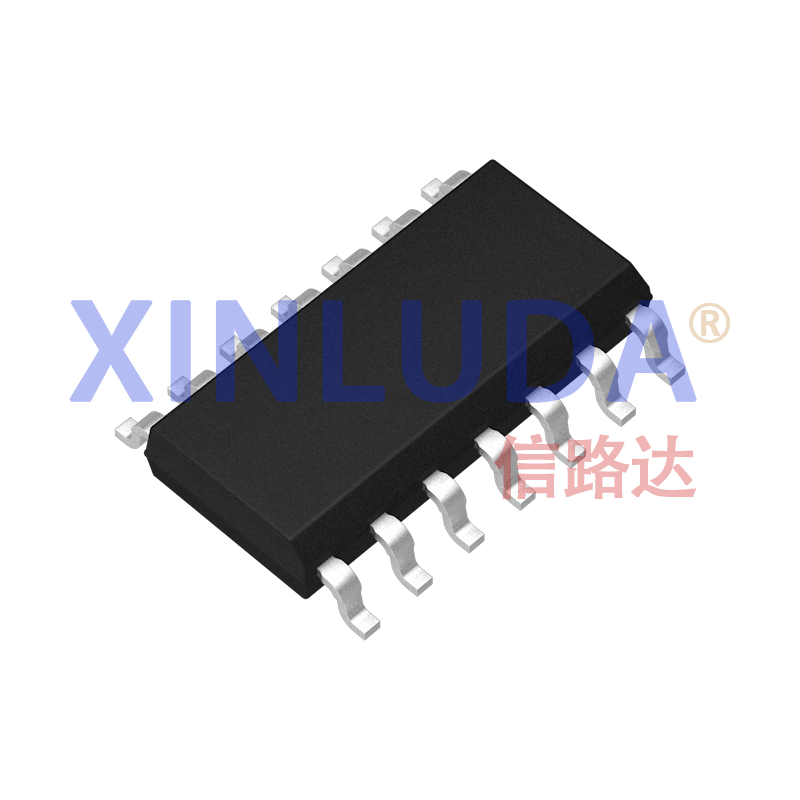

● Package option: XL74LS02 (SOP14) ，XD74LS02 (DIP14)

Apply for samples

Product	Package	Operating temperature	QTY.	ROHS	Apply for samples
XL74LS02	SOP-14	0℃~+70℃	2500 pcs/Reel	✔	Sample application
